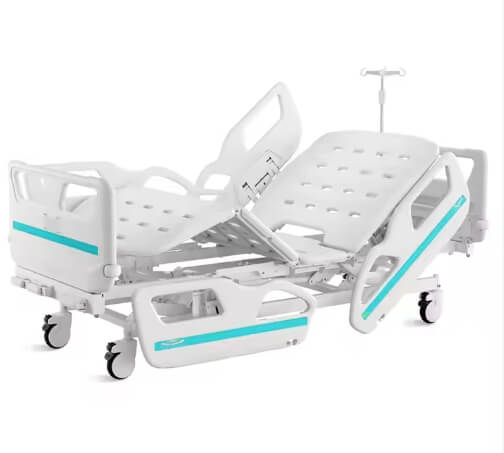

3 Crank 3 Function Foldable Manual Patient Hospital Bed

Steels | Painting
Baosteel from Fortune Global 500
11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact.
Plastic
Environmental plastic can be sterilized in 100°C, tensile upto 30MPa
Virgin ABS material
Bumper Cover
Reduce the impact of the collision,safe and slinky.
Hand Control
Retractable hand crank, 100,000 times remaining intact
Extreme protection device, sounds when tipped to the max position,
Strong pallets to increase the bed height adjustment(400-710mm)
Design
Mordern design.Use new and strong inserted ABS fire-proof panel avoid off.
Easy to be cleaned and installed. Net weight over 3.6kg.
Platform
Stamping forming platform, smooth surface no welding scar, bearing 135KG load. Option resin X-ray translucent platform.
Siderail
Aluminum alloy side rail, 6-staff,collapsed type with safe lock.
Castors
5”covered casters
TPR tire no worn out after running 30KM, save anti-winding hard shell,united forming without bolts.
Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500 time.
Drainage Hooks
Laser cutting drainage hook, both sides.
IV Pole
Full SS IV pole, bearing 15kg.

Specifications

External size (LxWxH) 2110x960x400-710 mm
Mattress platform 1925x820 mm
Safe working load 135 kg
Back-rest adjustment 0-75° (±10°)
Knee-rest adjustment 0-35° (±10°)
Manual Cranks 3pcs
5" Covered Castors 4pcs
Foldable Side Rail 1set
ABS Bed Ends with Safe Lock 1set
I V Pole 1set
I V Pole Prevision 4pcs
Drainage Hook 4pcs
Mattress Holder 2pcs
