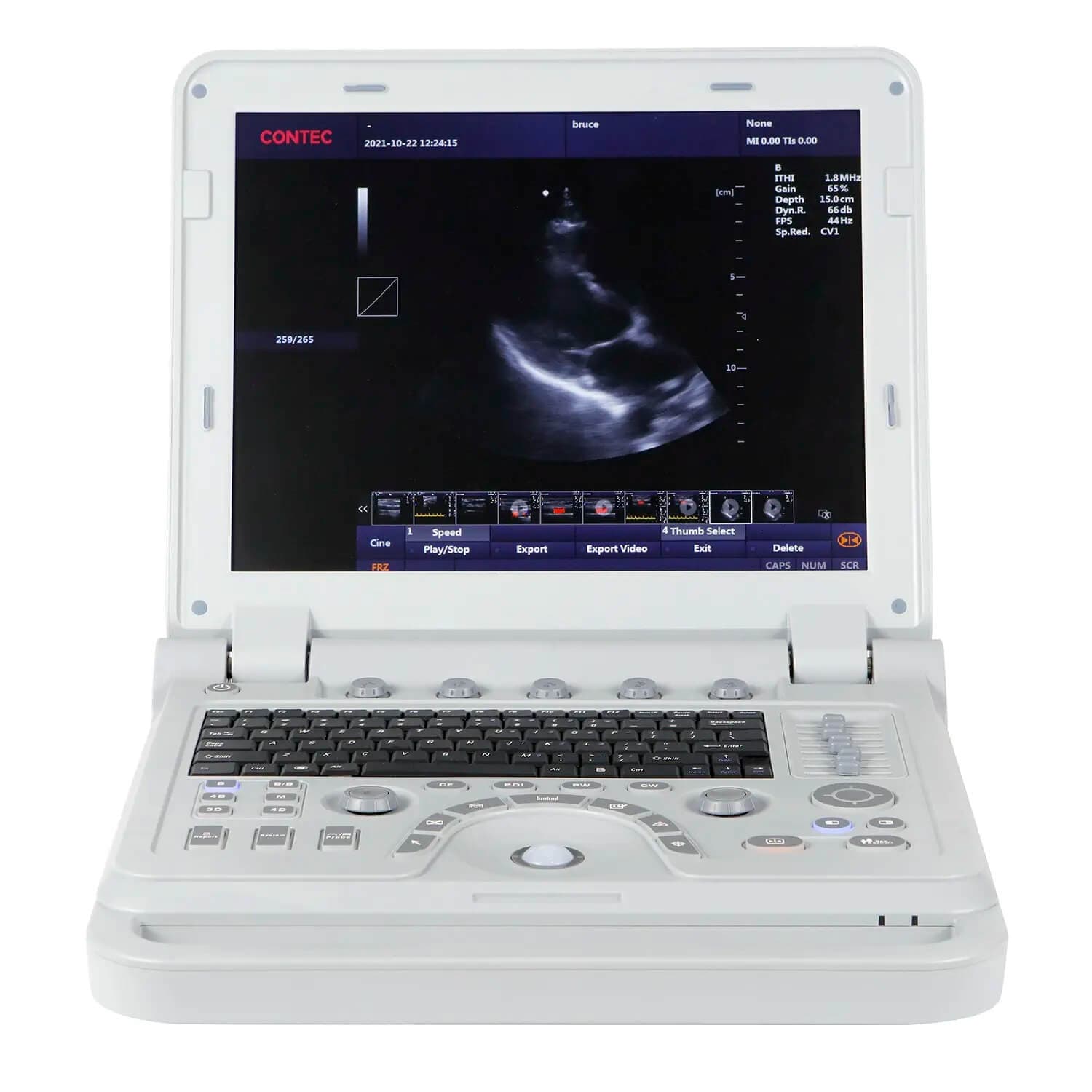

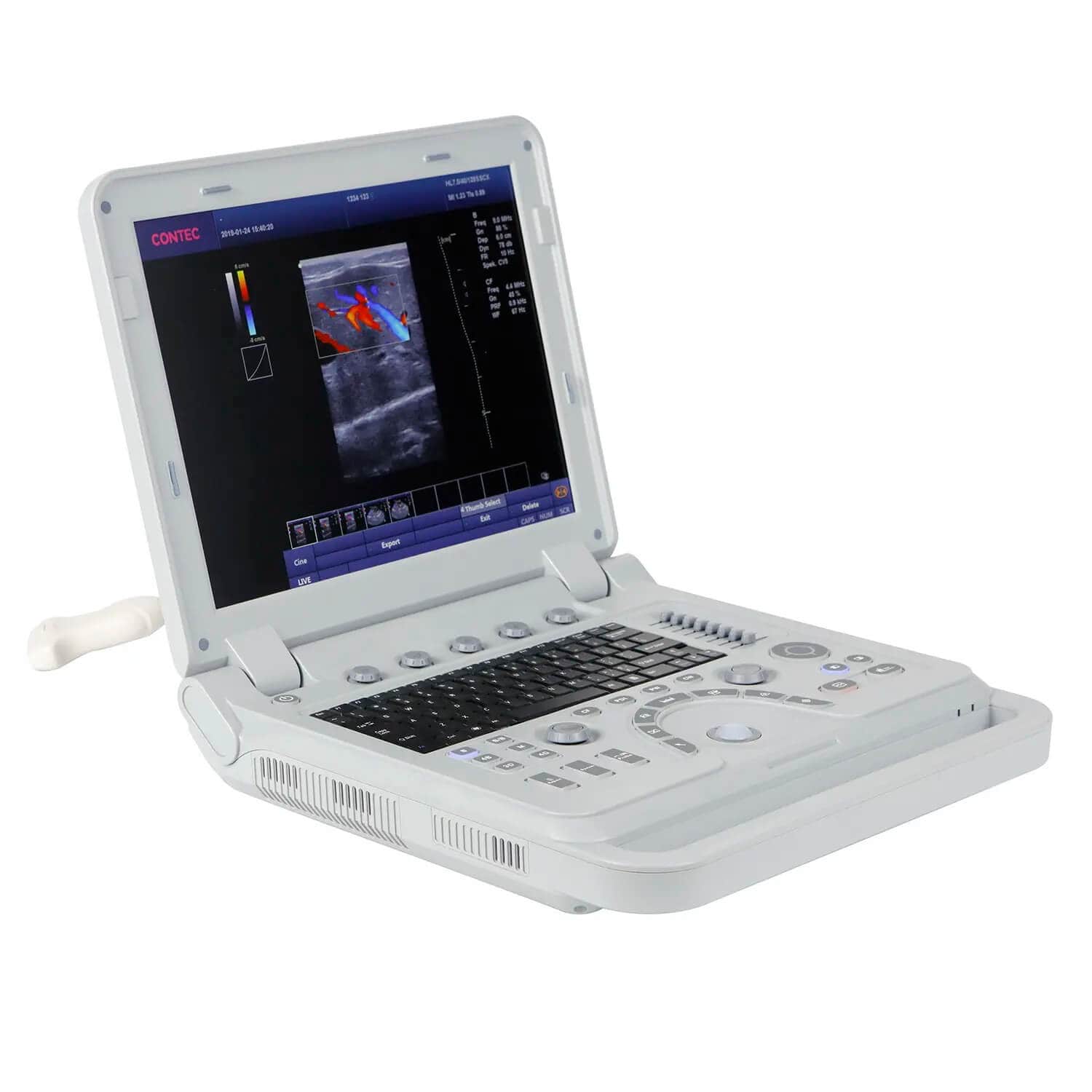

Color Doppler Ultrasound with Convex Probe


Features


Ergonomic Design
15 Inch TFT Display
Viewing Angle: 170°
Resolution: 1024X768 Pixels
7500mAh Lithium Battery
Continuous Working Time: 2 hours
Easy Operation
One Button Automatic Image Optimization

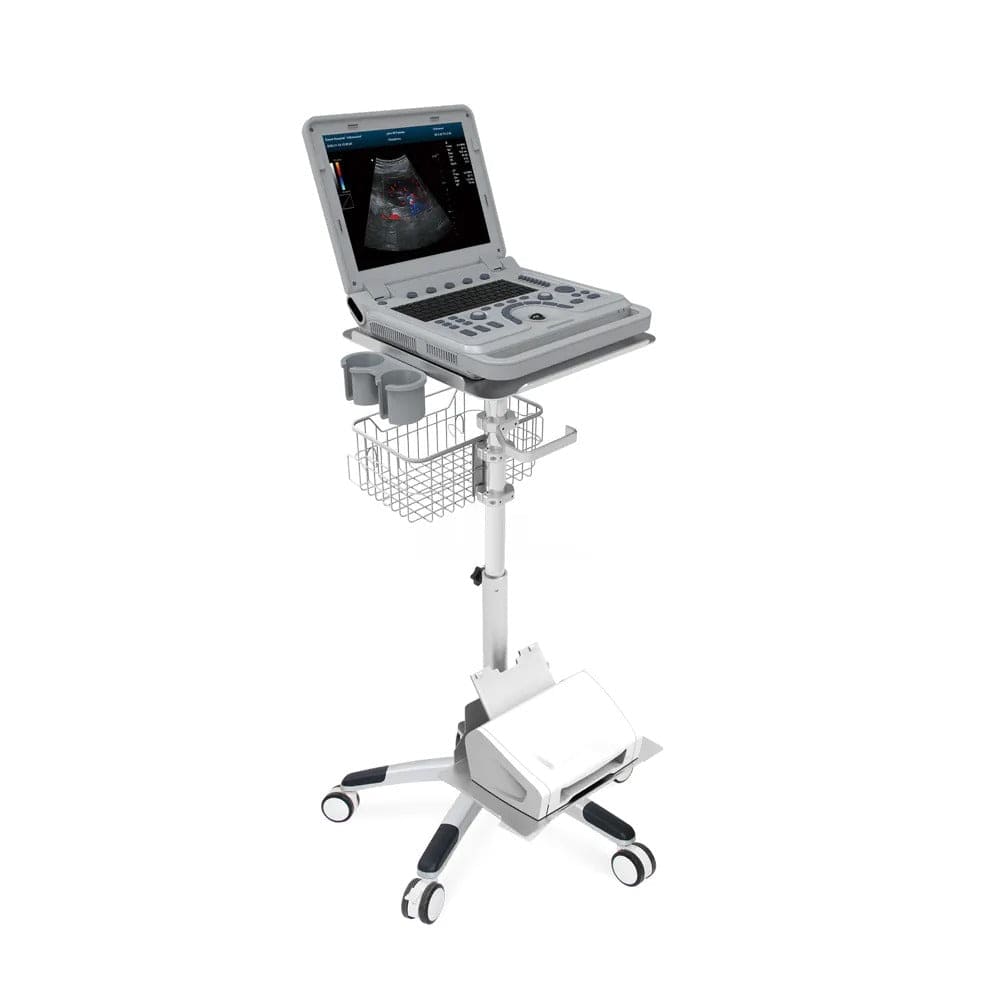

Trolley (Optional)

Echo


Advanced Technologies
Digital Beam Forming (DBF)
Real-time Dynamic Aperture (RDA)
Dynamic Receiving Focus (DRF)
Tissue Harmonic Imaging (THI)
PW Auto Trace
Trapezoid Imaging
Compound Imaging
B+CF/PDI/DPDI+PW
Full-Screen Display

Economic


The latest platform & more advanced chip-set give you better imaging quality at lower cost
Support PC printer with reduced paper cost 128G Memory Card
Eco-Friendly
Less Radiation
Lower Power Consumption
Longer Usage Life: TFT

Support Timing Lock


Distributors can set timing lock according to the
buyers’ payment schedule:
e.g. 3 Months/ 6 Months/9 Months

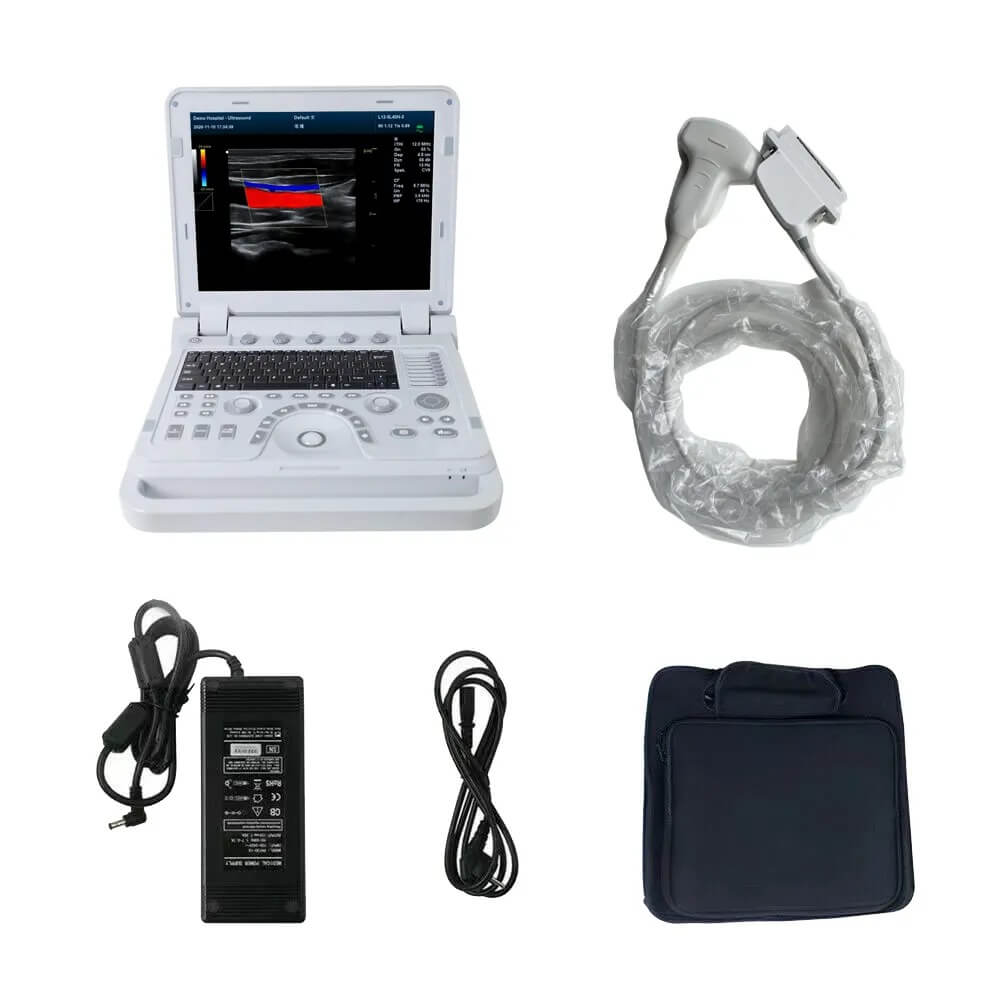

Accessories




One Convex Probe (3.5 MHz)
One Power Cord
One User Manual
One Adapter

Physical Characteristic




Dimension: 370mm (L) * 360mm (W) * 80mm (H)
Weight: 6.5kg

Applications
Abdomen, OB/GYN
Vascular, Small Organ

Imaging Technologies
SR, DBF, RDA,THI, DRF,, IMT, PW Auto Trace,B+CF/PDI/DPDI+PW
Display Mode
B, B/B, 4B, PDI, M,CF, PW

Gray Scale
256 Levels

Scanning Depth
250mm Max (Depend on the probe)

Archive Management
Patient Information Management,
Image/Video Record, Examination Report

Software Package
General, OB/GYN, URO,
Cardiac, Vascular, Small Organ

Zoom
4 Steps

Cine Loop
1086 Frames

Probe Frequency
2.0Mhz-12.0Mhz (Depend on the probe)

Option
Color M-mode, Anatomic M-mode,Wide Scene Imaging, Linear Array Deflection/Trapezoid Imaging,Trolley,

Standard Configuration
2 Probe Connection Ports, 2 USB, VGA Port,
Video Port, S-Video Port, LAN Port,
B+CF, TSI, THI, iTHI, HPRF, B+PW,
B+CF/PDI/DPDI+PW,
Space Compounding Imaging

Power Supply
AC 100-240V, 50-60Hz

Optional configuration
No. Accessory name Purpose
1 Convex probe Be mainly used for:
1)examination of abdominal tissues (including liver, gallbladder, spleen, pancreas, kidney, uterus, bladder, prostate, etc.);
2)assessment of fetal growth and fetal maturity in obstetric diagnosis.
2 Microconvex probe Be mainly used for examination of heart and abdominal tissues.
3 Transrectal probe Be mainly used for examination of the rectum.
4 endo-vaginale probe Be mainly used for gynecological examination.
5 Linear Probe Be mainly used for neonate, musculoskeletal system, peripheral vessels, small organs (breast, thyroid, testis,
etc.).
