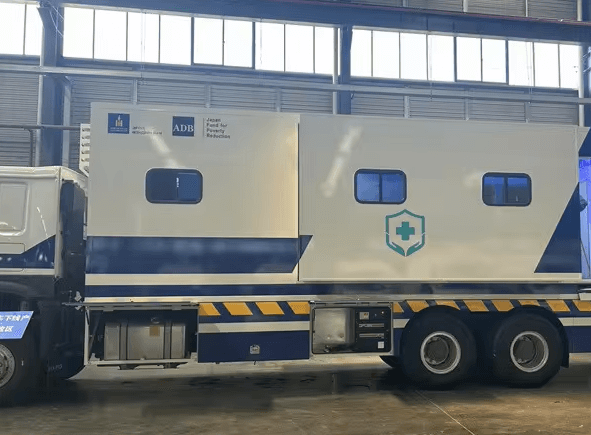

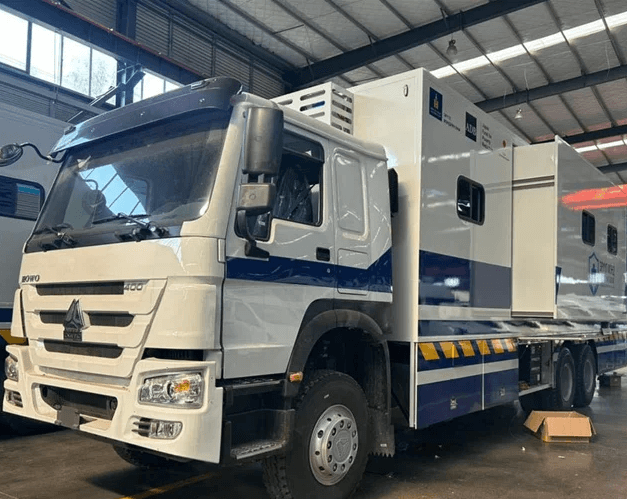

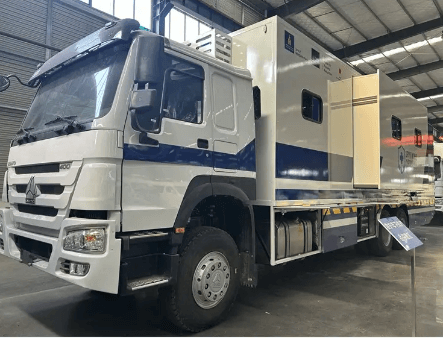

Mobile Surgery Operating Medical CT Truck

Mobile CT Clinic Truck
Dimension: 11950*2550*3800mm

Wheelbase: 4600+1350mm

Engine: D10.34-40 , 336hp


Different sizes mobile CT truck/X-RAY truck can be customized per need

Color and logo per customer requirements.

Specification
Item
Unit
Parameter
model

SINOTRUK HOWO 6*4 mobile CT Truck
Steering

Right hand drive
Overall dimensions
MM
11950*2550*3800
Box body dimensions
9800×2500×2500
Gross weight
KG
Appro×24500
Curb weight
Appro×12500
Axle load
6560 (front axle)/17500 (back axle)
Wheel base
MM
4600+1350
Exhaust/kw
ml/hp
6800/336
Fuel type
Diesel
Engine
D10.34-40
Emission standard
EURO III
Traction system
6*4
Number of tires
10+1
Tire specification
12R22.5
Transmission
9-speed with over drive
Operation control system
Electrically hydraulic control
Electric system
24v
Pax allowed in cab
3
Door open
- Internal dimensions:9.8 m x 2.5 m x H 2.5 m;
- Total rear opening 2 leaves
- Side door: 1 m x 1.95 m + stirrup;
- Reinforced straight non-slip floor;
- Rear bracket sliding steps;
- Reinforced rear frame, roller stops

Useful volume: at least 50 m3;
1. Fuel tank volume (L): 200 litres or more
2. Front brakes, - Rear brakes, - Parking brake: standard
3. Front suspension: Shock absorbers with leaf springs
4. Rear suspensions: Rigid bridge with leaf spring
5. Exterior mirrors, Windshield, Wiper, Conventional front and rear light: standard
6. INTERIOR AND COMFORT
- Radio pre-equipment: AM/FM CD + Bluetooth + USB port
- Speakers: 2 at least
- Air conditioning: Manual
- Front seats: 3 seats
- Upholstery and upholstery: fabric or leather
- Number of seats: 3 including driver
- Driver's footrest: Yes
Interior equipment
1. A conditioned sanitary cell of high strength structure,with 2 expandable walls to provide additional internal working space;
2. One waiting room/reception area; One unisex toilet.
3. With one checking table and two chairs, cabinet for medicine storage, electric socket, water sink and lightings.
4. Overhead air conditioner
5. Hydraulic support, can achieve body leveling on inclines or bumps
6. Fixed cable reel, meet the electrical load of the entire truck.
Maintenance and Service Toolbox
Essential ordinary and special tools (jack, crank, wheel wrench, key kit)
Remark
The CT equipment is not included. Will leave enough space for customer to install it in the truck van box.
Production cycle
60 working days after deposit
Warranty
12 months from the date of supply
