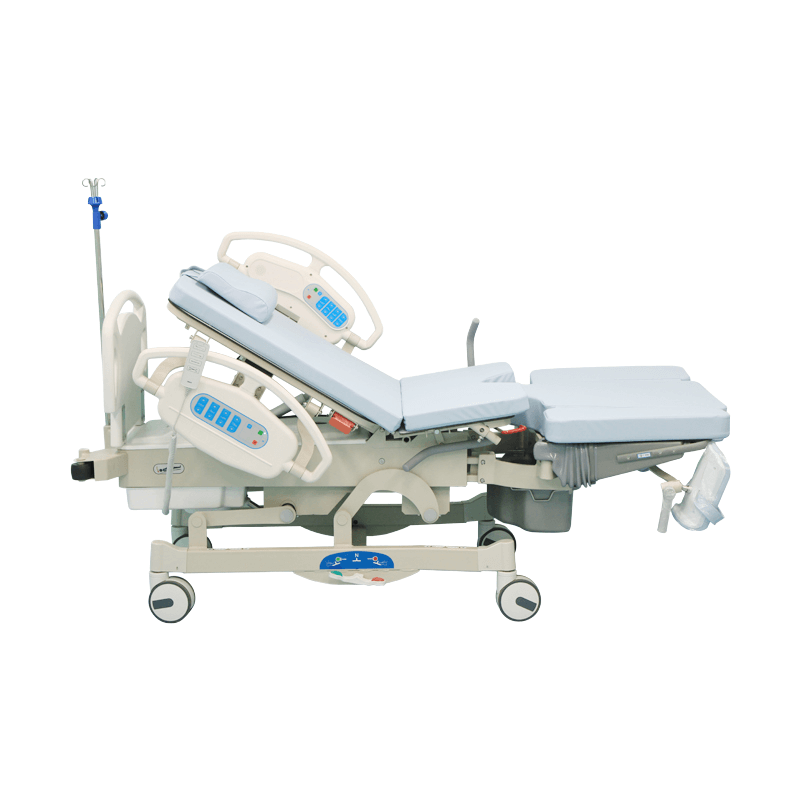

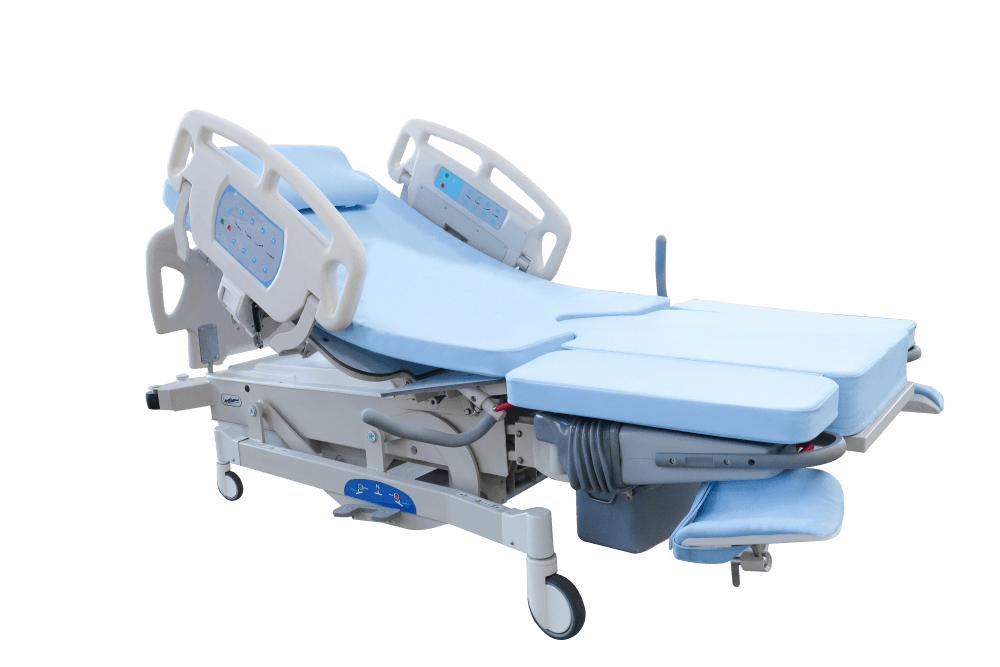

Luxury LDR Delivery Bed

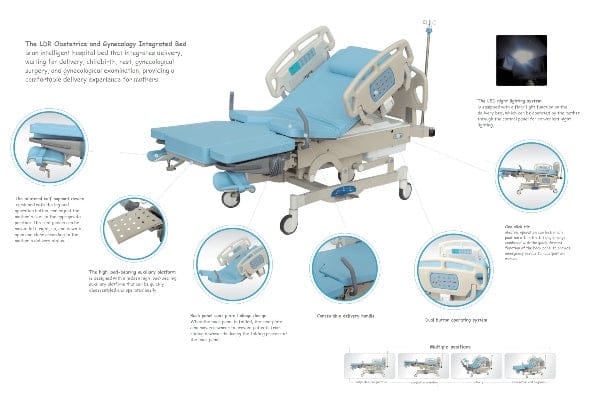

Features

All-in-One Functionality: Comprehensive integration for Delivery, Waiting for Delivery, Labor, Recuperation, Gynecological Examination, and Surgery. This avoids the strain and anxiety of moving the patient across multiple beds.

Precise Height Adjustment    Electrically adjustable height from 20.1 inches to 35.8 inches, ensuring optimal ergonomic working height for medical staff and safe patient access.

Full Articulation for Delivery   The footplate provides full flexibility, including 90 degrees upfold, 90 degrees downfold, 90 degrees outside swing, and a 6.3-inch lifting distance for various labor and delivery positions.

Trendelenburg Positioning   Features an 8 degrees backward tilting angle (Trendelenburg), essential for emergency situations or specific clinical procedures during examination or surgery.

Customized Seating   The Backplane adjusts up to 65 degrees, and the Seatplate adjusts up to 16 degrees, allowing for comfortable labor positions and proper angles for examination/delivery.

Specifications

Product Type： Luxury LDR Integrated Delivery Bed
Overall Bed Length：88.6 inches
Overall Bed Width (with Guardrail)    40.6 inches
Height Adjustment Range (Min-Max)   20.1 inches - 35.8 inches
Backplane Upfold Angle：   0 - 65 degrees
Seatplate Upfold Angle： 0 - 16 degrees
Bed Backwards Tilting Angle： 8 degrees
Foot Plate Lifting Distance： 6.3 inches
Foot Plate Upfold/Downfold Angle： 90 degrees / 90 degrees
Foot Plate Outside Swing Angle： 90 degrees
