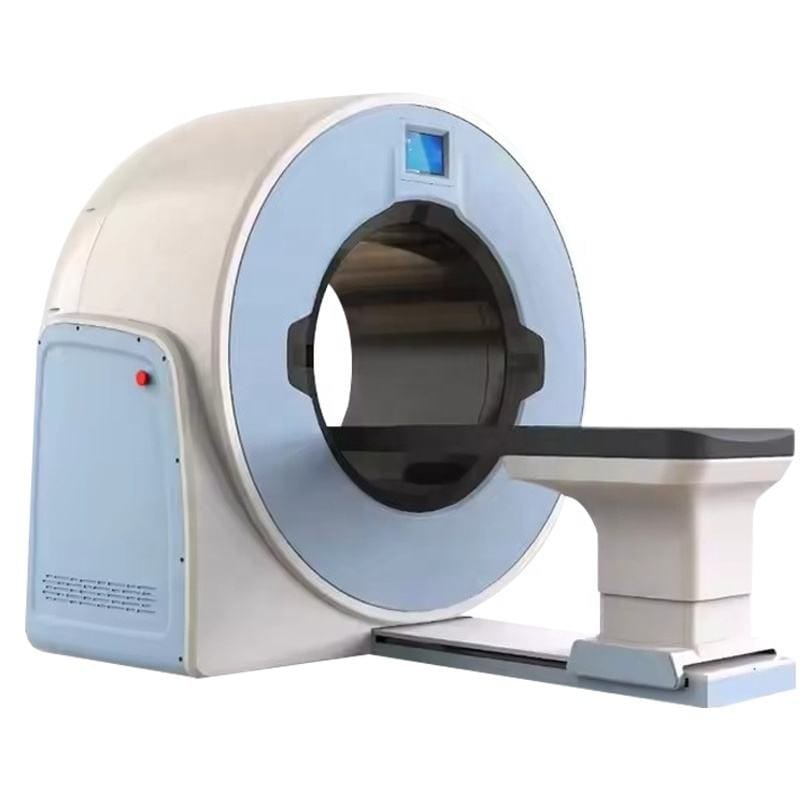

Multi-Modal Veterinary CT & Dynamic DR X-Ray System - 4.5s Scan & 31.5" Aperture (220V Plug-and-Play)

Product Overview & Key Specifications

• Product Type: Multi-Modal Veterinary CT Scanner & Dynamic DR X-Ray System

• Primary Function: Delivers 3D CBCT, Dynamic DR (Fluoroscopy), Static DR, and Dental Panoramic imaging in a single footprint, eliminating the need for separate diagnostic machines and heavy facility electrical retrofits.

• Key Performance Specifications:

  • Ultra-Fast Scan Speed: 4.5-second scan time generating 600-slice images in a single rotation to minimize animal sedation duration.

  • Patient Capacity & Fit: Extra-wide 31.5" (≥80 cm) scan aperture accommodates both small pets and large dog breeds.

  • Imaging Field of View: CT Radial FOV of 15.7" (40 cm), Longitudinal FOV of 28.3" (72 cm), DR FOV of 13.8" × 10.2" (35 cm × 26 cm).

  • Artifact Prevention: Built-in Respiratory Suppression Technology significantly reduces motion blur caused by animal breathing during scans.

  • Power Requirements: 15 kW system runs on standard 220V single-phase power (Plug-and-Play setup).

  • Physical Footprint: Compact dimensions of 78.7" L × 66.9" W × 63.0" H (6.6 ft × 5.6 ft × 5.2 ft).

Outfitting a veterinary practice with advanced diagnostic imaging usually means navigating three major roadblocks: massive equipment purchasing costs, expensive facility electrical upgrades, and the high risks associated with prolonged patient anesthesia.

This Multi-Modal Veterinary CT & Dynamic DR System solves all three. It combines high-resolution CT scanning, dynamic fluoroscopy, static digital radiography, and dental panoramic imaging into one compact station. Designed to plug directly into a standard 220V power line, it brings diagnostic-grade imaging to your clinic without structural or electrical retrofits.

Key Benefits & Solved Pain Points

• 4.5-Second Ultra-Fast Scanning: Prolonged anesthesia increases patient risk and staff stress. This system completes a full 600-slice CT capture in just 4.5 seconds, drastically shortening sedation times and letting your team review clear diagnostic images almost instantly.

• Respiratory Motion Suppression: Animals don't hold their breath on command. Integrated motion-suppression technology actively counters breathing artifacts during scans, ensuring sharp thoracic and abdominal images on the first take.

• 5-in-1 Diagnostic Versatility: Eliminate the need to purchase separate X-ray, fluoroscopy, and dental imaging units. Switch seamlessly between 3D Cone Beam CT, Dynamic DR (fluoroscopy for swallowing/airway studies), Static DR, and Dental Panoramic modes on a single platform.

• Standard 220V Plug-and-Play Power: Most hospital-grade CT units require expensive high-voltage three-phase power drops and transformer installations. This 15 kW unit operates on standard 220V household-style power, keeping installation costs extremely low.

• 31.5-Inch Extra-Wide Aperture: Small gantries limit the size of patients you can treat. The spacious 31.5" (80 cm) scan bore easily accommodates large canine breeds as well as feline patients without tricky positioning.

Product Specifications

• Imaging Modes: 3D CBCT, Dynamic DR, Static DR, Dental Panoramic (DSA Upgradable)

• CT Scan Speed: 4.5 seconds (Single Circle 600-Slice)

• Gantry Scan Aperture: 31.5 inches (≥80 cm)

• CT Radial Field of View: 15.7 inches (40 cm)

• CT Longitudinal Field of View: 28.3 inches (72 cm)

• DR Field of View: 13.8 inches × 10.2 inches (35 cm × 26 cm)

• Power Requirement: 15 kW, 220V AC Plug-in Power

• Dimensions: 78.7" L × 66.9" W × 63.0" H (6.6 ft × 5.6 ft × 5.2 ft)

• Motion Control: Integrated Respiratory Suppression Software
